應(yīng)用標準

AIAG/DAMA/JAPIA/Odette,ALDI ,ISO/IEC TR 29158 (DPM Cat 0),DHL,FPMAJ,French CIP,GS1 General Specifications,HDMA Guidelines,Health Industry Barcode (HIBC),IFAH,Italian Pharmacode,Japan Codabar,Laetus Pharmacode,Laetus Standard,MIL-STD-130,Pharmacy Product Number (PPN),Automatic GS1 or ISO,GS1 (NTIN),Miniature Pharmacode ,

Postal (EIB, USPS IMB/Code 128, POSTNET Japan Post) PZN-big, normal, small (German Pharmacode)

GS1 US Certification

Data Matrix for Healthcare,Data Matrix (ECC 200),EAN/UPC,EAN/UPC and extended codes ,EAN/UPC with CC,GS1 DataBar Omnidirectional,ITF-14 GS1 DataBar-14 with CC (formerly RSS-14 with CC),UCC/EAN with Supplementals,UCC/EAN-128, UCC/EAN-128 with CC

ISO Conformance Standards

ISO/IEC 15415, 15416, 15418 ISO/IEC 15426-1, 15426-2 All supported ISO/IEC Symbology Specifications

外形尺寸

高: 279.4 mm (11.0”) (Includes rubber feet on system base.)

寬: 279.4 mm (11.0”)

深: 228.6 mm (9.0”)

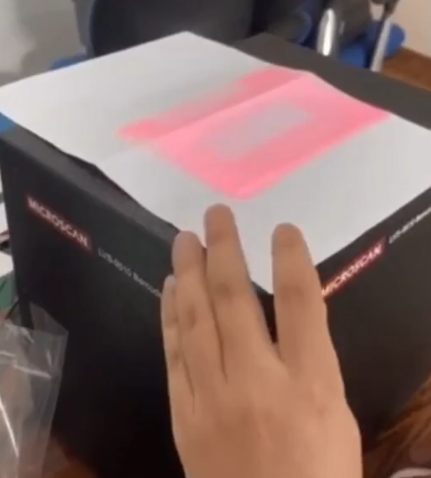

掃描窗口: 120.65 mm x 171.45 mm (4.75" x 6.75")

重量

Unpackaged standalone weight: 2.72 kg (6.0 lbs.)

Shipping weight (includes all items packaged in shipping box, such as power supply and cables): 5.89 kg (13.0 lbs.)

最低電腦系統(tǒng)要求

（電腦由客戶自行提供）

Windows? 7 Professional, Windows? 8.1 Pro, or Windows? 10 Pro; Intel?Core? i3 or higher; 4 GB RAM; 800 x 600 Screen Resolution; One USB 2.0 port available per unit.

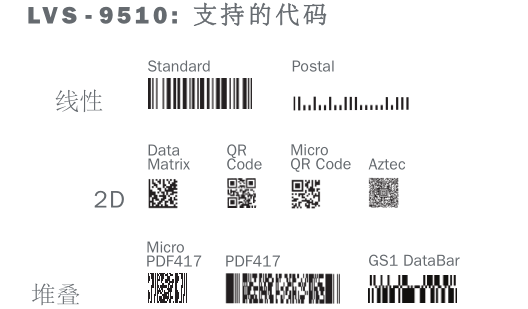

支持的代碼

Linear (1D) Symbologies

Codabar

Code 128, Code 39, Code 93

DataBar

DataBar Expanded and Limited

DataBar Omnidirectional

DataBar Stacked and Truncated

EAN/JAN-13

EAN/JAN-8

Enterprise Intelligent Barcode (EIB)

4-State (4SB)

GS1-128

Hanxin Code

HIBC

Interleaved 2 of 5 (ITF)

ITF-14

Japan Post

MSI Plessey

Pharmacode–Italian and Laetus

PZN 7 and PZN 8

UPC-A and UPC-E

USPS-128

USPS Intelligent Mail Barcode (4-State Customer Barcode)

Two-Dimensional (2D) Symbologies

Aztec

DataBar with CC-A, CC-B, or CC-C

EAN/JAN-13 with CC-A, CC-B, or CC-C

EAN/JAN-8 with CC-A, CC-B, or CC-C

ECC-200 (Data Matrix) including:

? EIB CMDM

? French CIP

? GS1 Data Matrix

? NTIN and PPN

SAFETY CERTIFICATIONS DESIGNED FOR FCC,

GS1-128 with CC-A, CC-B, or CC-C

MaxiCode

Micro QR Code

MicroPDF417

PDF417

QR Code

UPC-A with CC-A, CC-B, or CC-C

UPC-E with CC-A, CC-B, or CC-C

Note: CC = Composite Components Contact Microscan for a complete list of supported ECC-200 (Data Matrix) codes.

光源

Type: White LEDs; Red filter (660nm) Optional clear window available for purchase.

電源

Power Input: 12 VDC @ max. 2.5 A

通訊

USB 2.0 A plug to B plug cable 1.8 m (6 ft.)

攝像頭

Monochrome 5.0 megapixel

環(huán)境

Operating Temperature: 10° to 30° C (50° to 86° F) Storage Temperature: 0° to 40° C (32° to 104° F) Relative Humidity, Operating: 20% to 80% (non-condensing); Relative Humidity, Storage: 20% to 95% (non-condensing)

21 CFR PART 11

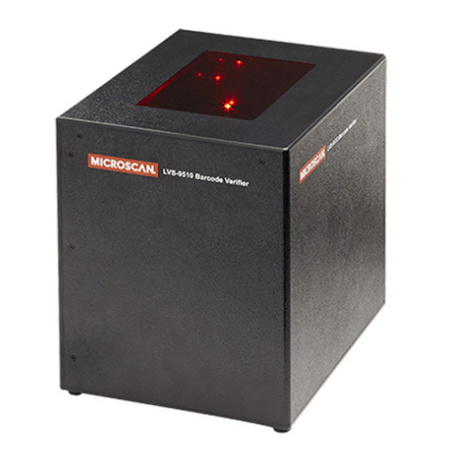

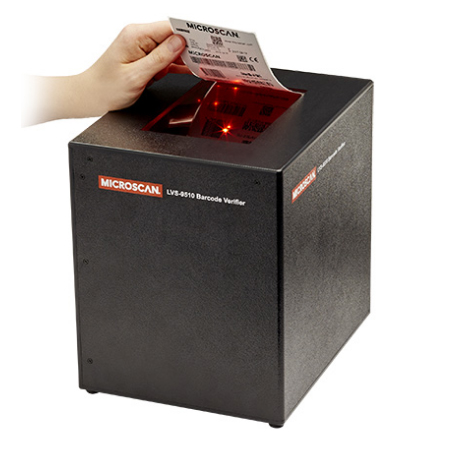

The LVS-9510 is certified by GS1 US and is 21 CFR Part 11 compliant-ready.
